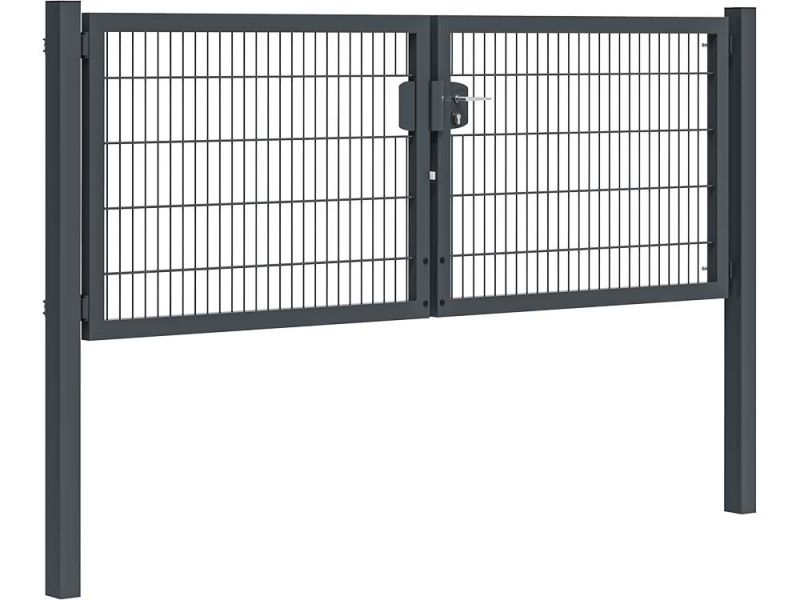

Double Garden Gate Professional 300 cm
A double garden gate with twin wire mesh 8/6/8 gate is the perfect match for double garden gate with twin wire mesh 8/6/8 mm. This sturdy and strong pedestrian gate is universally applicable in any situation. The wire mesh filling consists of 8 mm thick horizontal wires and 6 mm thick vertical wires, machine-welded for optimal strength. The posts of the double garden gate professional measure 80 x 80 mm and are extended by 80 cm beyond the height of the gate wings. The steel of the posts is 2 mm thick. With its modern and robust construction, this double garden gate ensures maximum stability and security.
High-Quality Finish
The double garden gate professional from Fenceonline is first hot-dip galvanised and then powder-coated. Each wing features a slot opening, allowing you to decide on site which side you want the lock on. The other opening can be covered with the included counter casing. The strike lock and lock casing are made of aluminium, significantly reducing the risk of rust formation and ensuring long-lasting weather resistance.
Dimensions of the Double Garden Gate Professional – 300 cm Wide
The premium double garden gates are available in four different widths: 200 cm, 300 cm, 400 cm and 500 cm. The widths mentioned refer to the space between the posts.
- 142 cm – Gate wing width
- 144 cm – Passage width (one wing open)
- 296.5 cm – Total passage width (between posts)
- 137 cm – Total passage width, including posts
- 8 cm – Post width
- Adjustable hinges allow for fine-tuning alignment during installation.
All gate dimensions are visually illustrated in the manual.
Components of the Double Garden Gate Professional
- Two gate posts
- Two wings with 8/6/8 wire mesh filling
- aluminium lock casing
- Steel counter casing
- aluminium strike lock
- Post caps
The double garden gate professional is available in three different widths: 300 cm, 400 cm and 500 cm, with corresponding passage widths of 287.5 cm, 387.5 cm and 487.5 cm. The total width, including hinges and posts, is detailed in the manual.
Difference Between Premium and Professional Gates
Feature |
Professional Gate |
Premium Gate |
|
Wire Mesh Thickness |
8/6/8 mm |
6/5/6 mm |
|
Strike Lock & Lock Case |
aluminium |
Polyamide |
|
Wing Frame Dimensions |
60 x 40 mm |
40 x 40 mm |
|
Hinge Placement |
Outside of the post (180° opening) |
Inside of the post (90° opening) |
|
Galvanization Type |
Hot-dip galvanized |
Sendzimir galvanized |
Installation & Options
The double garden gate professional from Fenceonline pairs perfectly with double garden gate with twin wire meshfencing, especially 8/6/8 wire mesh panels. This modern and robust combination ensures maximum strength and security.
For optimal stability, we recommend installing the gate in the ground using quick setting concrete, available from Fenceonline. Alternatively, the gate can be mounted on base plates. For this option, we recommend our base plates for gates, but don't forget to order self-tapping screws for securing the gate post to the base plate.
Note: base plates do not include ground mounting materials. These must be purchased separately.
Order Your Double Garden Gate Online
You can now easily order your double garden gate online. We deliver everything complete to your doorstep at a time that suits you. Want more information about fencing and matching gates? Feel free to contact us!
