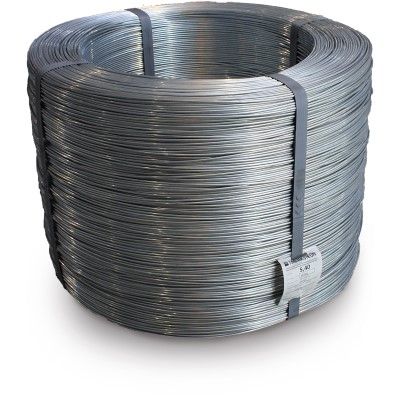

Galvanized wire coil 3.8 mm
The coils are mainly used for the production of fencing panels.
Normative references
- EN ISO 16120-2:2011-10: Non-alloy steel wire rod for conversion to wire
- EN 10218-2: Steel wire and wire products - General
Part 2: wire dimensions and tolerances
- EN 10244-2: Steel wire and wire products – non-ferrous metallic coatings on steel wire
Part 2: zinc or zinc-alloy coatings
- EN 1179: zinc and alloy – primary zinc
Mechanical and Chemical Properties
Diameter (mm) / Diameter Tolerance (mm) / Ovality (max./mm) / Tensile strength (MPa) /
Min. Elongation min. Agt (%) / Galvanizing 99,995% zinc (EN 10244-2, Class D) / Helix (max./mm)
3,20 ± 0,05 0,10 750-900 1,0 ≥ 40 gr/m2 300
3,40 ± 0,05 0,10 750-900 1,0 ≥ 40 gr/m2 300
3,75 ± 0,06 0,10 750-900 1,0 ≥ 40 gr/m2 300
4,00 ± 0,06 0,10 700-850 1,0 ≥ 40 gr/m2 300
4,30 ± 0,06 0,10 600-800 1,5 ≥ 40 gr/m2 300
4,50 ± 0,06 0,10 600-800 1,5 ≥ 40 gr/m2 300
4,65 ± 0,06 0,10 600-800 1,5 ≥ 40 gr/m2 300
5,00 ± 0,07 0,10 600-800 1,5 ≥ 40 gr/m2 300
5,50 ± 0,07 0,10 550-750 1,5 ≥ 40 gr/m2 300
5,55 ± 0,07 0,10 550-750 1,5 ≥ 40 gr/m2 300
6,30 ± 0,07 0,10 550-750 1,5 ≥ 40 gr/m2 300
7,50 ± 0,08 0,10 550-750 1,5 ≥ 40 gr/m2 300
7,55 ± 0,08 0,10 550-750 1,5 ≥ 40 gr/m2 300
8,30 ± 0,08 0,10 550-750 1,5 ≥ 40 gr/m2 300
C Si Mn P S Cu Cr Ni Mo CEV
Min. 0,04 0,14 - - - - - - - -
Max. 0,10 0,23 0,70 0,040 0,040 0,40 0,15 0,15 0,08 0,50
Coil dimensions
D : 800 - 1100 mm
d : 580 - 620 mm
h : 600 or 750 mm
L : Unwinding left
Weight : 1000 - 2600 kg
Helix
Maximum helix of 300 mm.
Packaging forms
The coil is tied by 4 galvanized steel straps 32x0,8 mm
Inspection document
Test report 2.2 - EN 10204 on request.
