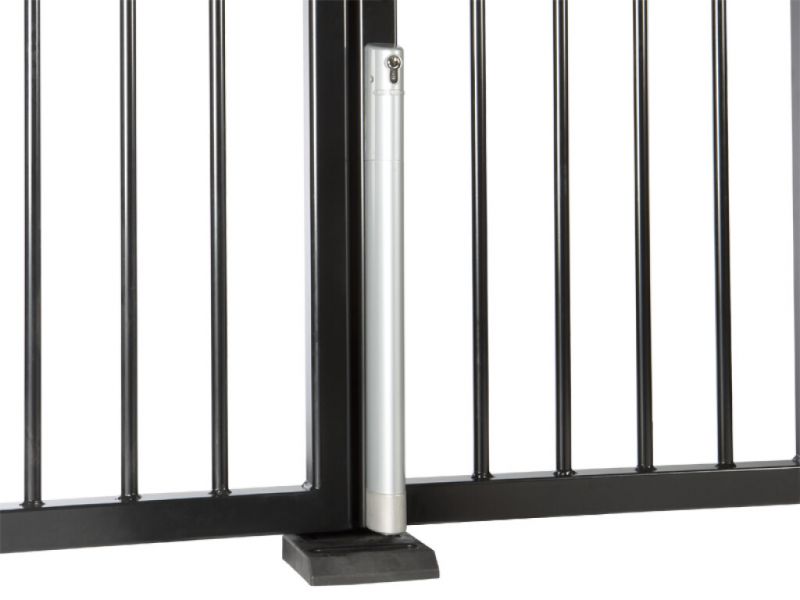

Locinox Electra ground bolt - Motorised
Motorised 24V ground bolt with 115 mm depth locking for secure locking of automated swing gates. With a ground bolt you relieve the drive motors that are loaded by, among other things, wind pressure.
- Vandal-proof, powder-coated aluminium housing
- Can be connected to the flashing light function of the automated gate (min. 3 sec pre-flashing required) or directly to the gate automation
- Automatic detection and memorisation of continuous or pulse signal
- Mechanical unlocking by means of cylinder possible in case of emergency
- To prevent injuries, the integrated obstacle detection automatically stops the movement of the ground bolt in case of overpressure.
- Depth lock: 115 mm
- Latch diameter: 20 mm
- Load capacity: >1000 kg
- For gate profiles from 40 mm
- Consumption in operation: 25 W / Peak: 72 W / Standby consumption: 0.2 W
- 5 m connection cable included
- 3012-37-STD cylinder included

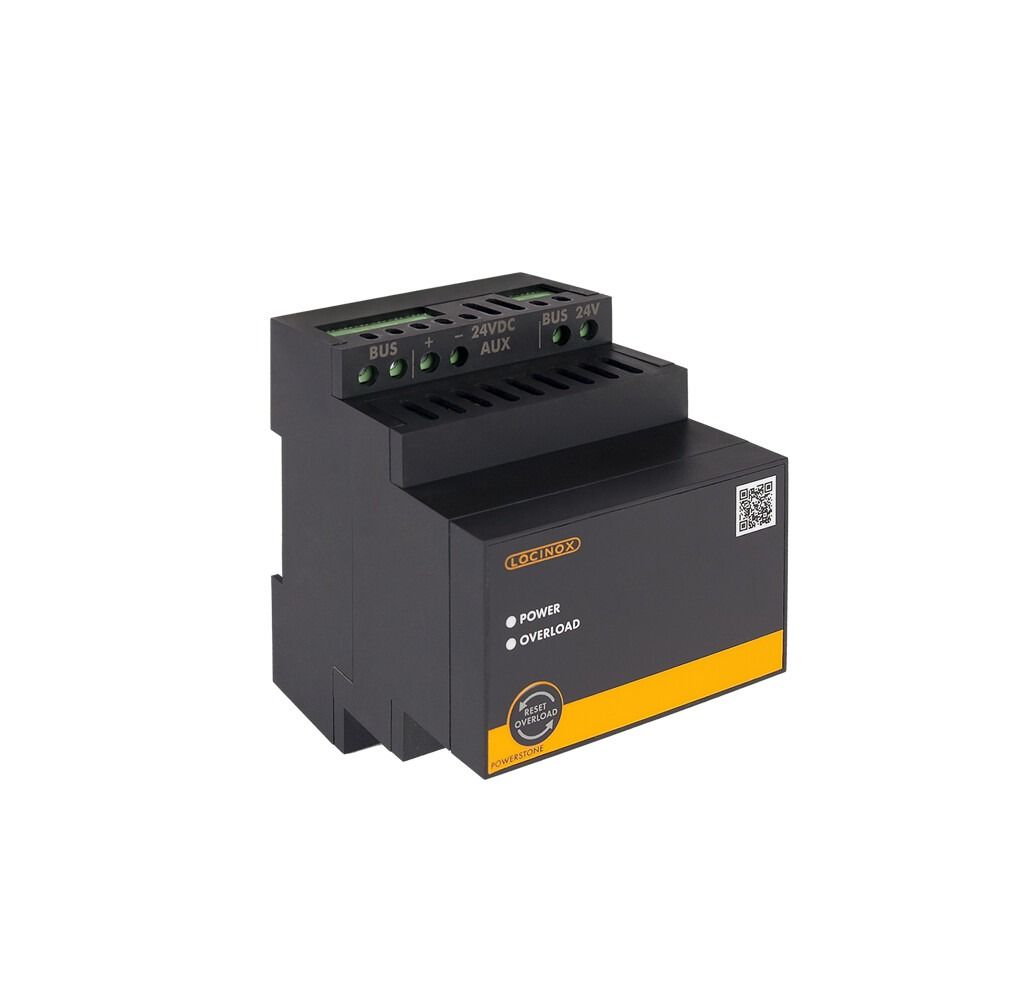

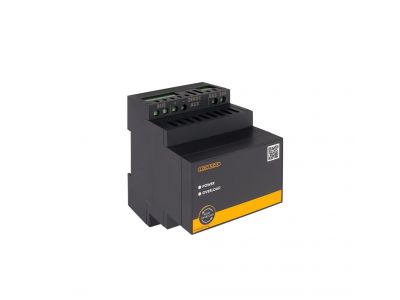

Can be connected to Locinox Powerstone 60W power supply
Meets IP66
