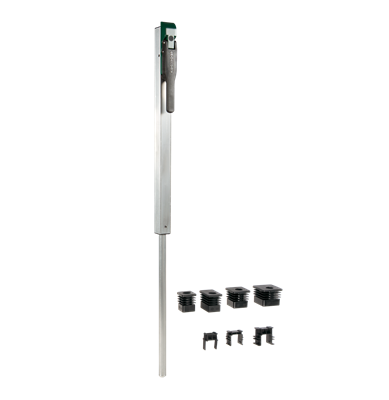

Locinox Suby | Internal ground bolt
Internal ground bolt in aluminium. The ground bolt can be operated at a comfortable height. The aesthetic solution for every double gate.
- Height adjustment of the latch: 100 mm
- Internal ground latch in aluminium
- Depth locking: 120 mm
- Steel lever (polyamide) coated with black plastic ensures an optimum combination of strength, corrosion resistance and ergonomics
- Internal pressure spring guarantees perfect locking (even if the travel of the lever is limited by unevenness in the ground stop) and prevents overloading
- Quick and easy installation with 2 screws
- User-friendly latch operation at a comfortable height
- For gate profiles: 40x40 mm, 50x50 mm, 60x60 mm, 60x40 mm
- For 40 x 40 mm and 40 x 60 mm profiles: max. 2 mm wall thickness
- For 50 x 50 mm and 60 x 60 mm profiles: up to 3 mm wall thickness
