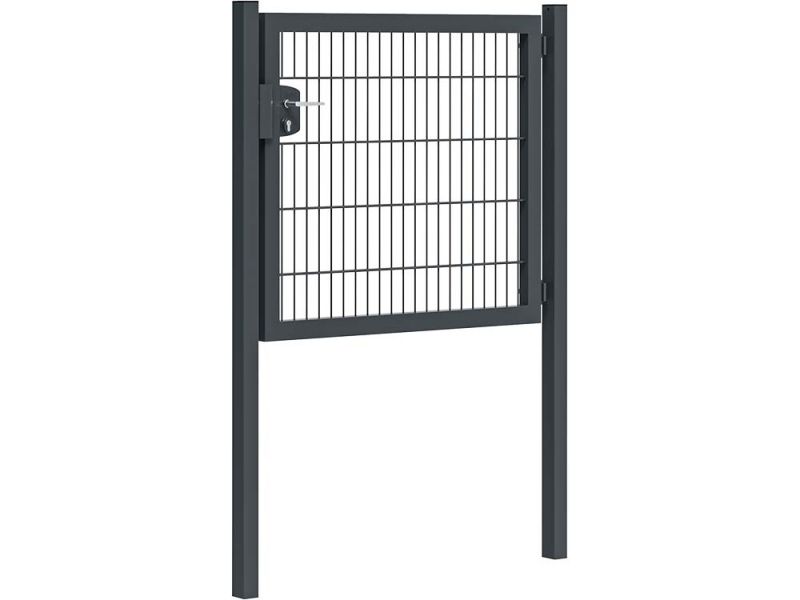

Single Pedestrian Gate Twin Wire Mesh Ø 8/6/8 mm – 125 cm
The professional single garden gate is an excellent choice for creating an access point in your twin wire mesh Ø 8/6/8 mm from Fenceonline. This gate is universally applicable in any garden and serves as a passage for yourself, your bicycle, scooter or lawnmower. The gate wing features a twin wire mesh infill, consisting of ø 8 mm thick horizontal wires and ø 6 mm thick vertical wires, which are machine-welded for extra strength.
The gate posts included with this gate are 80 cm longer than the gate height, allowing for a deep and stable installation in the ground. For long-term stability, we recommend setting the posts in quick-setting concrete from Fenceonline. The gate posts measure 60 x 60 mm and are made of 2 mm thick steel.
After production, the gate undergoes a hot-dip galvanisation process in a zinc bath. Following this, it is fully powder-coated for extra durability. Finally, the post caps, aluminum lock case, strike lock and door handle are added. This process minimises the risk of rust and provides optimal protection against weather conditions, ensuring high steel quality and long-lasting durability. With its robust structure and modern, sleek finish, this gate offers a secure and stylish access point to your fencing system.
Components of the professional single garden gate
- Two gate posts (60 x 60 mm)
- Gate leaf with twin wire mesh Ø 8/6/8 mm infill
- Aluminium lock case
- Strike lock
- Door handle
- Post caps
In addition to the standard lock with a door handle, you can optionally add a child safety lock to keep children or even pets safely inside. The child safety lock is compatible with all Ø 8/6/8 mm twin wire mesh gates.
The hydraulic gate closer is only compatible with the 100 cm wide gate and is therefore not suitable for the 125 cm and 150 cm wide gates.
The twin wire mesh infill provides high visibility. If you prefer more privacy, you can install privacy slats from Fenceonline by weaving them between the mesh panels. Use the Fenceonline clips to secure the ends, creating a fully enclosed gate.
Dimensions of the professional single garden gate
The professional single garden gates are available in three widths: 100 cm, 125 cm and 150 cm.
For the 125 cm wide gate, the key measurements are:
- 117 cm – Gate wing width
- 119 cm – Passage width between the posts (accounting for the strike lock, which slightly reduces the clearance)
- 137 cm – Total width of the opening, including the posts
- 6 cm – Width per post
A detailed diagram showing all measurements, including hinges and posts, is available in our installation manual.
Difference Between Premium and Professional Pedestrian Gates
Fenceonline offers two types of twin wire mesh gates: the premium and the professional models. Here are the key differences:
- Wire Thickness:
- Professional Gate: Ø 8/6/8 mm twin wire mesh infill
- Premium Gate: Ø 6/5/6 mm twin wire mesh infill
- Lock Components:
- Professional Gate: Aluminium lock case, strike lock and door handle
- Premium Gate: Polyamide lock case, strike lock and door handle
- Hinge Placement & Swing Radius:
- Professional Gate: Hinges mounted outside the post → 180° swing radius
- Premium Gate: Hinges mounted inside the post → 90° swing radius
- Coating:
- Professional Gate: Hot-dip galvanised
- Premium Gate: Sendzimir galvanised
- Frame Dimensions:
- Professional Gate: 60 x 40 mm
- Premium Gate: 40 x 40 mm
Both gates feature a twin wire mesh infill, ensuring maximum strength and durability.
Installation & Mounting Options
The professional single garden gate from Fenceonline is specially designed for Ø 8/6/8 twin wire mesh fencing but is also commonly used with Ø 6/5/6 twin wire mesh fencing. This gate completes your metal fencing system, offering a secure and aesthetically pleasing access point.
The gate is delivered as a complete package, so all you need to do is install it. If you prefer, you can also use our professional installation service.
For long-term stability, we recommend securing the gate posts with quick setting concrete from Fenceonline. If you prefer to install the gate on concrete or asphalt rather than embedding it in the ground, you can use our gate base plates. Don't forget to order self tapping screws for attaching the gate post to the base plates.
Important: We do not supply ground mounting materials for the base plates, as these need to be sourced separately, for example, from a local hardware store.
Order Your Ø 8/6/8 twin wire mesh gate Today!
Easily order your Ø 8/6/8 twin wire mesh gate from Fenceonline. We deliver a complete package, directly to your home, at your preferred time. Do you have questions about our twin wire mesh gates? Contact our experts via email for professional advice.
