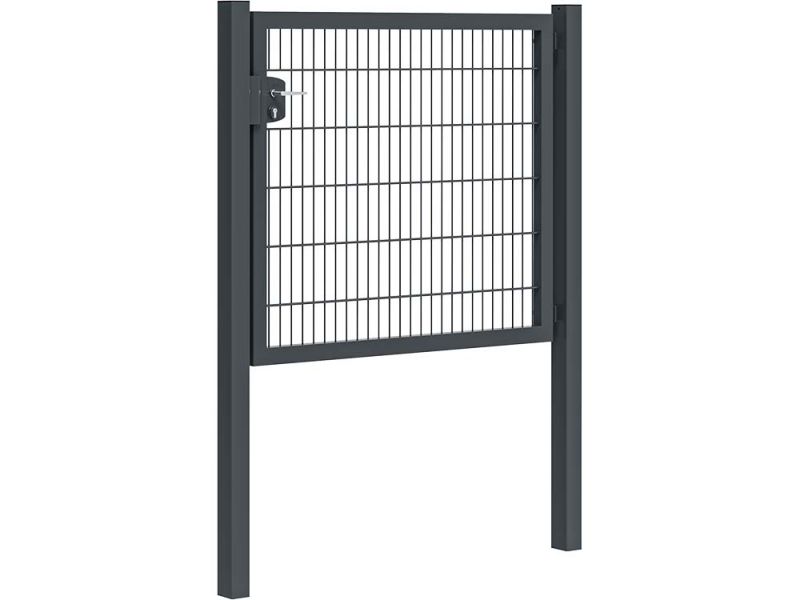

single garden gate with twin wire mesh Ă˜ 8/6/8 mm width 150 cm
Our single garden gate with twin wire mesh Ă˜ 8/6/8 mm is the perfect entryway for your Ă˜ 8/6/8 mm fence. It is also compatible with fences that have a Ă˜ 6/5/6 mm wire thickness. This gate seamlessly matches both fence types, providing a clean finish and universal applicability in any setting. In short, the twin wire mesh Ă˜ 8/6/8 mm gate is an essential component of your property boundary.
The horizontal wires in the gate wing are ø 8 mm thick, while the vertical wires are ø 6 mm thick. Both are machine welded for superior strength. Alongside the wing, the gate set includes two gate posts, which are 80 cm longer than the gate height for secure installation. The posts are 80 x 80 mm in size and have a 2 mm steel thickness.
This gate prioritises strength and security, featuring a robust construction while maintaining a modern and sleek appearance.
Durability and Coating
After production, the gate undergoes a hot dip galvanisation process, where it is fully immersed in a zinc bath. It is then powder coated, ensuring minimal risk of rust formation and optimal protection against weather conditions. This process maintains the gate’s high quality and enhances its durability.
Components of the single garden gate with twin wire mesh Ă˜ 8/6/8 mm
The professional single garden gate consists of the following parts:
- Gate wing with twin wire mesh Ă˜ 8/6/8 mm infill
- Two gate posts, including hinges

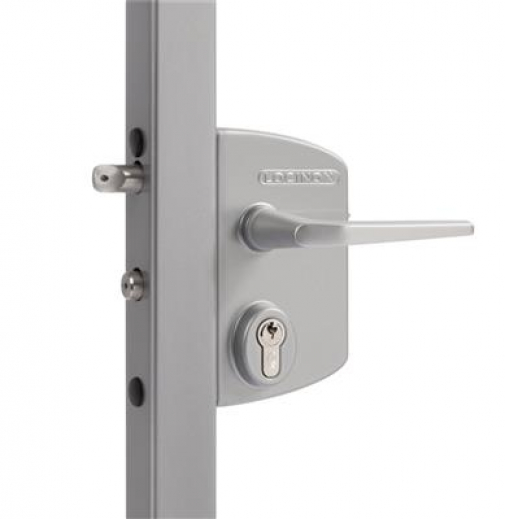

- Aluminium door handle, lock and strike lock
- Post caps
Additional options include the child safety lock, which is compatible with all professional gates and can be ordered separately.
Looking to increase privacy? Woven tape is an excellent solution. Simply weave it through the gate mesh and secure the ends with clips to enhance privacy.
Dimensions of the professional Single Garden Gates
The professional single garden gates are available in three widths: 100 cm, 125 cm and 150 cm.
Key measurements of the professional gate (150 cm version):
- 142 cm – Wing width
- 144 cm – Passage width between posts (accounting for the strike lock where the gate locks)
- 166 cm – Total width of the passage, including the posts
- 8 cm – Width per post
All dimensions, including hinges, gate posts and the strike lock are visually detailed in the installation manual.
Differences Between Premium and Professional Gates
We offer two gate variants: premium and professional. Below are their key differences:
- Gate Wing Infill:
- professional: Ă˜ 8/6/8 mm wire thickness
- Premium: 6/5/6 wire thickness
- Lock System:
- professional: Aluminium door handle, lock case and strike lock
- Premium: Polyamide components
- Gate Frame Size:
- professional: 6 x 4 cm
- Premium: 4 x 4 cm
- Hinge Placement & Swing Angle:
- professional: Hinges mounted on the outside of the post → 180° swing
- Premium: Hinges mounted on the inside of the post → 90° swing
- Coating & Protection:
- professional: Fully hot dip galvanised
- Premium: Sendzimir galvanised
Both gates are extremely strong, thanks to their twin wire mesh infill.
Installation Options
The professional gate is best combined with our twin wire mesh panel ø 8/6/8 mm. However, it also pairs well with a ø 6/5/6 fence, offering a modern and seamless finish to your property boundary. Strength and security remain the top priorities for both the gate and fence.
The gate is delivered with all necessary components all you need to do is install it. If you prefer, you can take advantage of Fenceonline installation service.

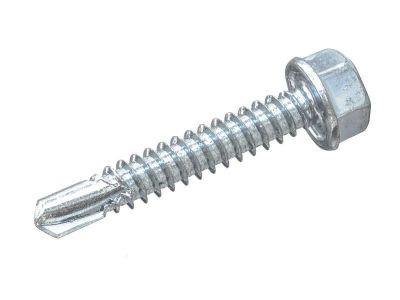

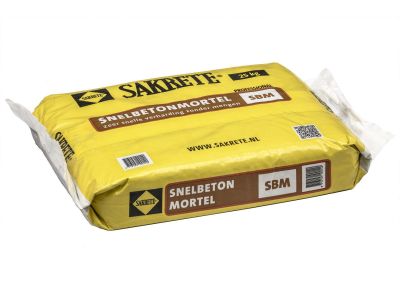

We recommend securing the gate using quick setting concrete for maximum stability. If the gate is being installed on concrete or asphalt, you will need base plates from Fenceonline. Don’t forget to order self drilling screws for attaching the gate post to the base plates.
Important: Base plates do not include materials for ground installation, as this varies per situation. You will need to purchase these separately.
Order Your professional Walk Gate Easily at Fenceonline
Order your professional walk gate now from Fenceonline and we will deliver it complete and at your preferred time. Or do you have any questions about the gate? Feel free to contact us via email or phoneour experts are happy to assist you!
