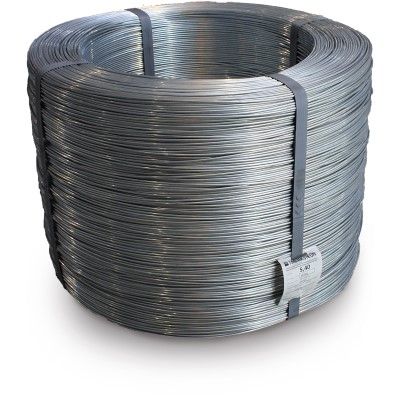

Galvanized wire coil 2.2 mm
The coils are mainly used for the production of fencing panels.
Normative references
- EN ISO 16120-2:2011-10: Non-alloy steel wire rod for conversion to wire
- EN 10218-2: Steel wire and wire products - General
Part 2: Wire dimensions and tolerances
- EN 10244-2: Steel wire and wire products - non-ferrous metallic coatings on steel wire
Part 2: zinc or zinc-alloy coatings
- EN 1179: Zinc and alloy - primary zinc
Mechanical and Chemical Properties
Diameter (mm) / Diameter Tolerance (mm) / Ovality (max./mm) / Tensile strength (MPa) /
Elongation min. Agt (%) / Galvanizing 99.995% zinc (EN 10244-2, Class D) / Helix (max./mm)
3.20 ± 0.05 0.10 750-900 1.0 ≥ 40 gr/m2 300
3.40 ± 0.05 0.10 750-900 1.0 ≥ 40 gr/m2 300
3.75 ± 0.06 0.10 750-900 1.0 ≥ 40 gr/m2 300
4.00 ± 0.06 0.10 700-850 1.0 ≥ 40 gr/m2 300
4.30 ± 0.06 0.10 600-800 1.5 ≥ 40 gr/m2 300
4.50 ± 0.06 0.10 600-800 1.5 ≥ 40 gr/m2 300
4.65 ± 0.06 0.10 600-800 1.5 ≥ 40 gr/m2 300
5.00 ± 0.07 0.10 600-800 1.5 ≥ 40 gr/m2 300
5.50 ± 0.07 0.10 550-750 1.5 ≥ 40 gr/m2 300
5.55 ± 0.07 0.10 550-750 1.5 ≥ 40 gr/m2 300
6.30 ± 0.07 0.10 550-750 1.5 ≥ 40 gr/m2 300
7.50 ± 0.08 0.10 550-750 1.5 ≥ 40 gr/m2 300
7.55 ± 0.08 0.10 550-750 1.5 ≥ 40 gr/m2 300
8.30 ± 0.08 0.10 550-750 1.5 ≥ 40 gr/m2 300
C Si Mn P S Cu Cr Ni Mo CEV
Min. 0.04 0.14 - - - - - - - - - - -.
Max. 0.10 0.23 0.70 0.040 0.040 0.40 0.15 0.15 0.08 0.50
Coil dimensions
D : 800 - 1100 mm
d : 580 - 620 mm
h : 600 or 750 mm
L : Unwinding left
Weight : 1000 - 2600 kg
Helix
Maximum helix of 300 mm.
Packaging forms
The coil is tied by 4 galvanized steel straps 32x0,8 mm
Inspection document
Test report 2.2 - EN 10204 on request.
